Battery Test Box

This test box is designed to emulate two battery stacks for surface testing of downhole oilfield tooling. Additional data breakout ports allow interception of all data running within the tool string for monitoring or debugging use. Crossover cables are available to interface with many manufacturers' tools

Specifications:

Input Voltage 90-264Vac, 130-320Vdc
Output Current up to 3Adc per battery channel
Operating Ambient Temperature -55 to +105C

Battery Test Box powered up and delivering 36V to the Battery A output and 28.6V to the Battery B output.

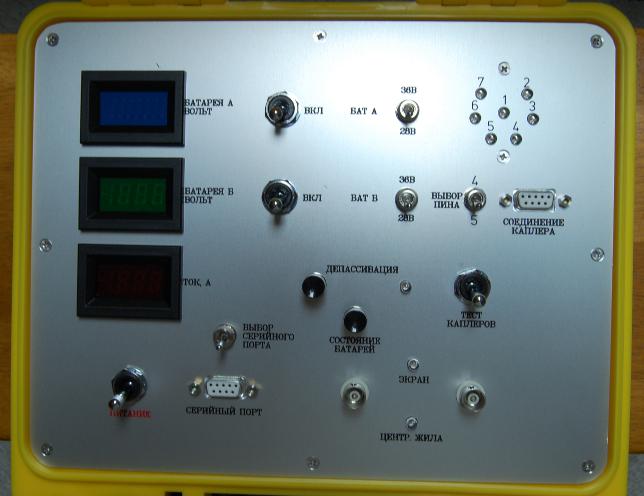

View of front panel. This version was customized with Russian labels engraved.

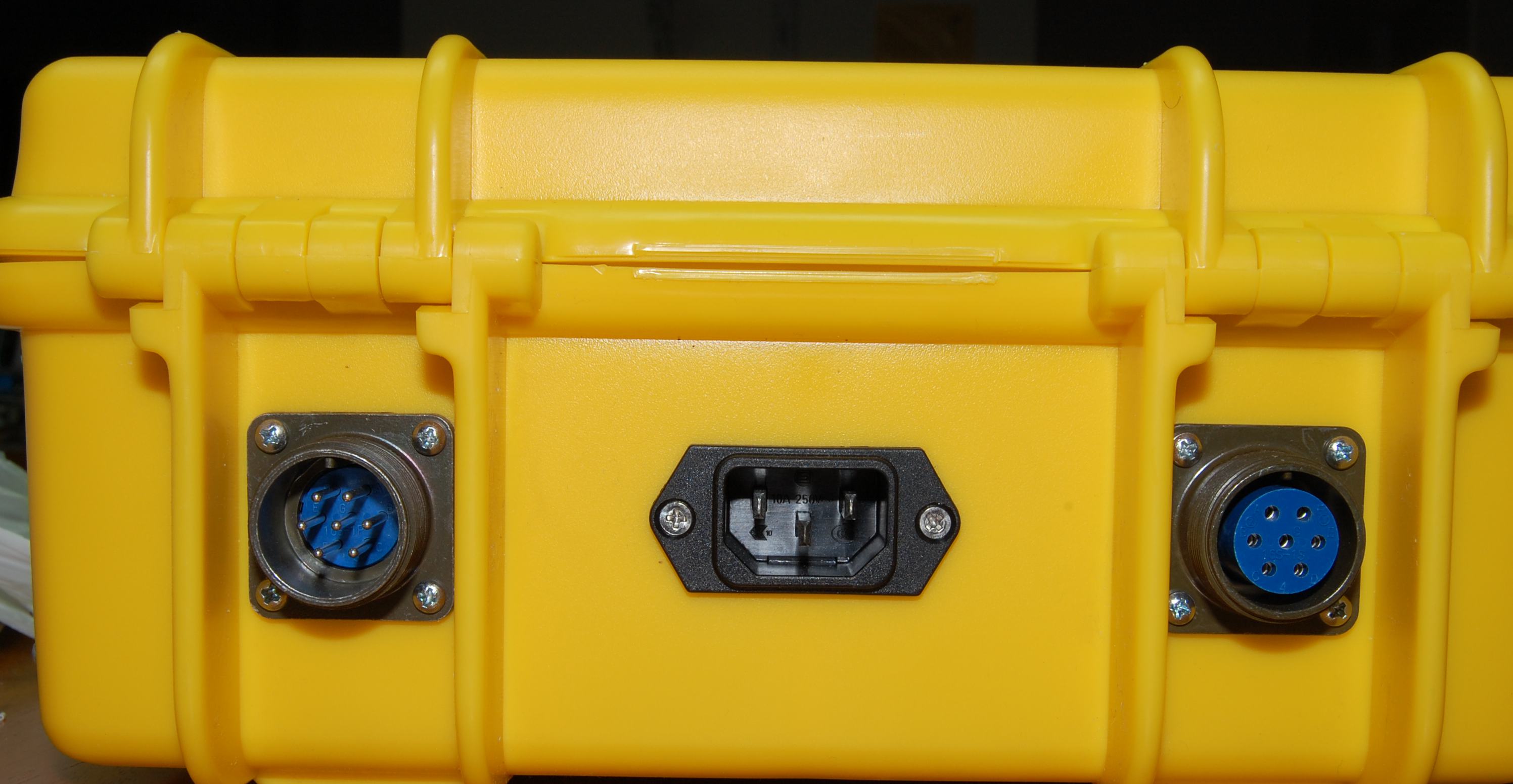

View of rear panel showing IEC C15 ac input and upstream/downstream I/O and power ports.

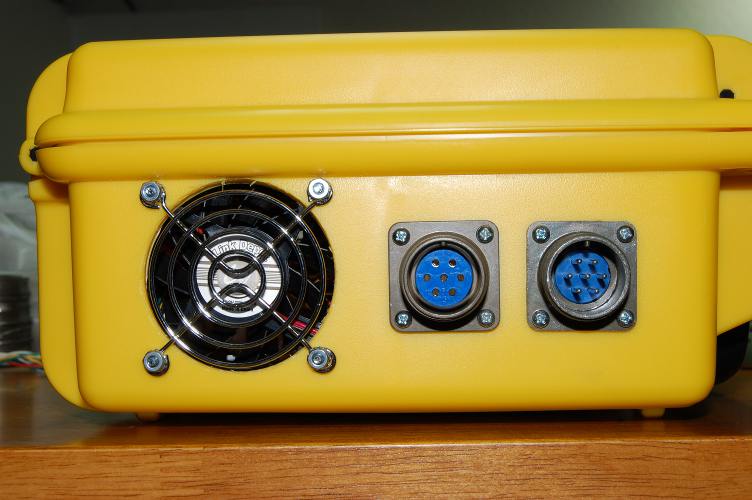

View of side panel showing additional ports for inter-tool coupler testing and battery diagnostics.
